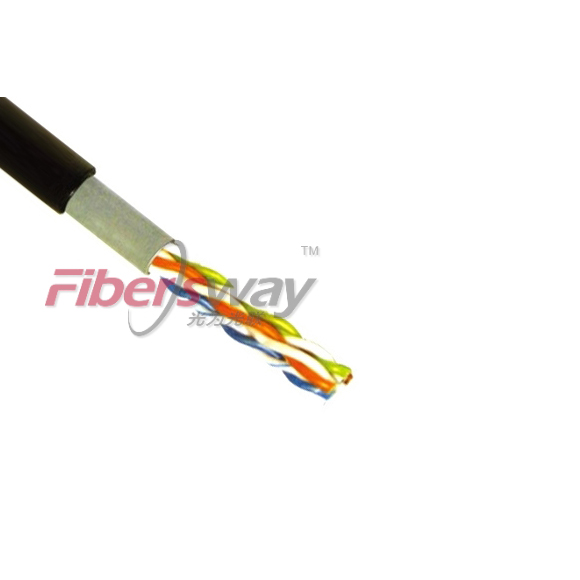

UTP CATEGORY 5E OUTDOOR LAN CABLE

WeChat

Sina Weibo

QQ space

Douban

Baidu Post Bar

0571-6375 2888

Product details

For fixed application,this cable is in 4-pair with conductors in 24AWG pure copper conductor with insulation of HD polyolefin,protected by inner thermoplastic and non-flame propagating PVC sheath+ UV-resistant PE sheath,

This cable is used outside of house for high speed transmission of voice and data between central and peripheral system for frequencies up to 100Mhz,for D class application in structured cabling system for buildings.Specification checked up to 350Mhz.

Standard	Application
ISO/IEC11801-2Ed	10/100BASE(TIEEE 802.3)
ANSITIA/EIA568-B.2	ATM，TP-PMD，ANSIX39T.5(TP)，LSDN，TP-DDI
EN 50173	ETHERNET, 1000BASE-T
EN-50288-3-1	GIGABIT-ETHERNET
UL	Token Ring(IEEE802.5)

Electrical Specifications

Dielectric strength	2.5KVdc-2seconds
Conductor resistance	Max 7.0 ohm/100M at 20℃
Max. ring resistance	16.8ohm/100M at20°C
Max. mutual capacitance	560 pf/100M
Max. capacity unbalance	330 pf/100M
Standard impedance	100± 15ohmbetween 1Mhz and 100Mhz
Minimum bending radius	50mm
Working temperatures	-20 ~6°C

Frequency (Mhz)	RL (dB)	ATT (dB/100)	NEXT (dB)	PS.NEXT (dB)	ACR (dB)	PS- ACR （dB）	ELFEXT (dB)	PS-ELF EXT(dB)
1MHz	20.0	2.1	68.0	66.0	66.3	64.3	63.8	60.8
4MHz	23.0	4.2	59.2	57.2	55.2	53.2	51.7	48.8
8MHz	24.5	5.9	54.8	52.8	49.0	47.0	45.7	42.7
10MHz	25.0	6.6	53.3	51.3	46.8	44.8	43.8	40.8
16MHz	25.0	8.3	50.3	48.3	42.1	40.1	39.7	36.7
20MHz	25.0	9.4	48.8	46.8	39.5	37.5	37.8	34.8
25MHz	24.3	10.3	47.3	45.3	36.9	34.9	35.8	32.8
31.25MHz	23.6	11.8	45.9	43.9	34.2	32.2	33.9	30.9
62.5MHz	21.5	17.1	41.4	39.4	24.4	22.4	27.8	24.8
100MHz	20.1	22.2	38.3	36.3	16.3	14.3	23.8	20.8
155MHz	18.8	28.2	35.4	33.4	1A	5.4	20.0	17.0
200MHz	18.0	32.5	33.7	31.7	1.4	0	17.7	14.7
240MHz	17.4	36.1	32.6	30.6	-	-	16.2	13.2
300MHz	16.8	41.1	31.2	29.2	-	-	14.2	11.2
350MHz	16.3	45.0	30.1	28.1	-	-	12.9	9.9

Manufacturing Specifications

Code	Description	InnerConductor	Insulation	Pairs color code	Sheath
-	DUALUTPCat5e	Pure copper	PE	Blue-blue/white	CM(CMG);CMR;LSOH
-	-	-	-	Orange-orange/white
1524	4*2 24AWG/1	AWG24	-	Green-green/while
-	-	-	-	Brown-brown/white
