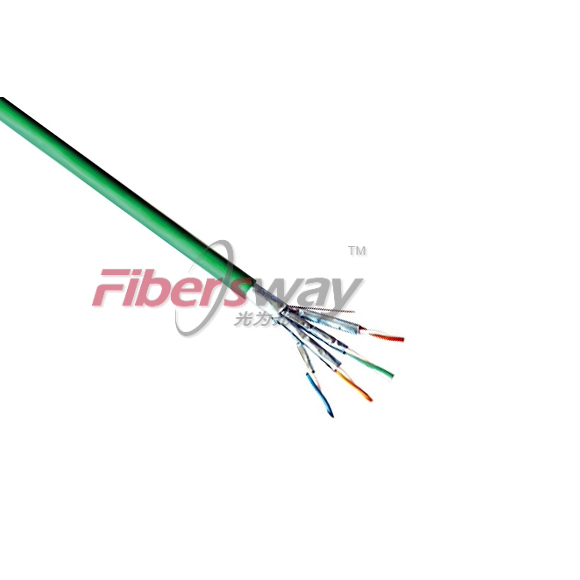

For fixed application,this cable is in 4-pair with conductors in 23AWG/32AWG*7 pure copper conductor with insulation of Foam PE,grouped with cross slot to make stable Structure,protected by athermoplastic and non-flame propagating sheath colored according to customer’s special request.

This cable is used for high speed transmission of voice and data between central and peripheral system for frequencies up to 500Mhz,for A class application in structured cabling system for buildings, specification checked up to 500Mhz.

Standard	Application
ISO/IEC11801-2Ed	10/100BASE(TIEEE802.3)
ANSITIA/EIA568-B.2	ATM, JP-PMD, ANSI X39T.5(TP), LSDNJP-DDI
EN 50173	ETHERNET, 1000BASE-T
EN-50288j1	GIGABIT-ETHERNET
UL	Token Ring(IEEE802.5)

Electrical Specifications

Dielectric strength	2.5KVdc-2seconds
Conductor resistance	Max 9.38 ohm/100M at20°C
Max. ring resistance	16.8ohm/100M at20°C
Max. mutual capacitance	560 pf/100M
Max. capacity unbalance	330 pf/100M
Standard impedance	100± 15ohm between 1Mhz and 100Mhz
Minimum bending radius	60mm
Working temperatures	-20 ~6°C

Frequency (Mhz)	Impedance Ohm	RL/return loss (dB)	Attenuation dB/100mt	NEXT (dB)	PS.NEXT (dB)	EL-FEXT (dB)	PSEL-FEXT (dB)
0.772	-	-	1.8	79	77	73	69
1	100±15	20	2	77	75	71	68
4	100±15	23	3.8	68	66	59	56
8	100±15	24.5	5.3	64	62	53	50
10	100±15	25	6	62	60	51	48
16	100±15	25	7.6	59	57	47	44
20	100±15	25	8.5	58	56	45	42
25	100±15	24.32	9.5	56	54	43	40
31.25	100±15	23.64	107	55	53	41	38
62.5	100±15	21.54	15.4	50	48	35	32
100	100±15	20.1	9.8	47	45	31	28
155	100±15	19.42	25.2	44	42	27	24
200	100±15	18	29	43	41	25	22
250	100±15	17.32	32.8	41	39	23	20
300	100±15	16.8	36.4	40	38	21	18
350	100±15	16.3	39.8	39	37	20	17
400	100±15	15.9	43	38	36	19	16
450	100±15	15.5	46	38	36	18	15
500	100±15	15.2	48.9	37	35	17	14

Manufacturing Specifications

Code	Description	InnerConductor	Insulation	Pairs color code	Sheath
-	FTP Cat6A	Pure copper	Foam PE	Blue -blue/white	CM(CMG); CMR; LSOH
-	-	-	-	Orange-orange/white
1341	4*2 23AWG/1	AWG 23	-	Green-green/while
1441	4*2 32AWG/7	AWG 24	-	Brown-brown/white
