CENTRAL TUBE RF REMOTE OPTICAL CABLE(GYFXJ H66/GYFXH)

RF Remote Optical Cable Series for FTTA Mobile Base

Applications:

This optical cable is applicable to the access of communication base.

Features:

The HD aramid strengthened device ensures the long-term stability of the optical fiber transmission;

Small outer diameter, light weight, flame retardant, easy stripping and flexible;

Convenient construction and maintenance;

Each unit cable has independent strength;

Each unit cable can be directly terminated through standard connectors;

The optical cable with LSZH flame-retardant material meets the requirements for indoor flame resistance and environment protection;

Applicable temperature: -40°C~+80°C;

Environmental protection grade: Comply with EU ROHS standard;

Flame retardant grade:Comply with OFNR specified by UL.

Transmission Performance

Note: other optical fibers can be provided according to user requirements.

Products Overview:

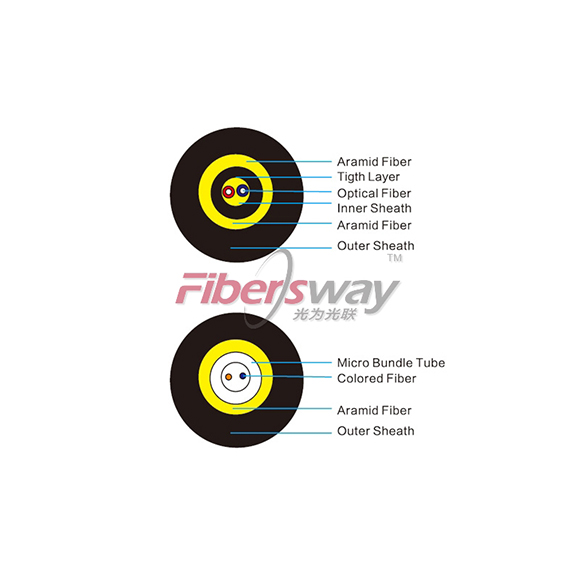

GYFXJH66 [nonmetal strength, tight layer type, central tube type, LSZH sheath, RF zoom-out optical cable] the structure of optical cable is the tight cover optical cable made from single-mode or multi-mode optical cable coated with high viscosity and strength of tight cover material. Putting tight cover optical cable in the middle of nonmetal aramid fiber reinforced yarn and extruding and packing a layer of LSZH sheath internal shield, wind nonmetal aramid fiber around the internal shield and then extrude and pack a layer of LSZH sheath to make into cable. GYFXH[nonmetal strength, central tube type, LSZH sheath, RF zoom- out optical cable] the structure of optical cable is embed single-mode or multi-mode optical fiber into micro beam tube with LSZH sheath, putting the micro beam tube in the middle of nonmetal aramid fiber reinforced yarn and extruding and packing a layer of LSZH sheath to make into cable.

Executive Standard:

YD/T2289.1-2011 cable for wireless Remote Radio Unit (RRU) Part Product Structure Chart 1: Optical cable

Technical parameters (typical value)

Note:

1. "D" represents the outer diameter of the short shaft.

2. The typical value can be correspondingly adjusted according to actual conditions.

3. The corresponding products can be designed according to client's special requirements.
