MPO PATCH CORDS OPTICAL CABLE

Armored Optical Fiber Cable System for Emergency Condition Use

Descriptions:

he cable in this system utilizes a PVC/LSZH tube that contains 4~12 tight-buffered fibers surrounded by aramid yarns strength member, and sheathed by a stainless hose and braided stainless steel layer, then with a PVC/LSZH jacket.lt is wounded on a specially designed for rush repair and terminated by standard connectors.This cable system can be use for emergency conditions to change the failure lines by repeated mechanical connection methods,and it is convenient returned and repeated used.

Applications:

Live broadcast transmission

Project rush repair

Telecommunication equipment room transfer

Line test

Rush repair mainly for aerial,duct and direct buried temporary conditions.

Features:

Stainless steel hose protected the fibers from unnecessary damage.

Excellent crush,bend and tensile performance,anti-ants and rodent resistance.

Soft and small diameter,compact and light weight;Easy operation and convenient carrying.

Save rush repair time and maintenance costs,and the armored structure can protect the fiber from various stress,thus keep the stability of optical transmission.

No need to worry about construction damage to the optical fibers,double brake and transportation tie devices enable the system is very convenient use and easy carrying.

Each terminal has different color identified boot and robust branch device. Standard connectors such as FC/SC/ST/MU/LC/E2000 are available upon request.

Applicable temperature: -20°C~+60°C;

Environmental protection level: Comply with EU RoHS Standard.

Transmission Performance

Note:

1. represents the outer diameter of the short shaft.

2. The typical value can be correspondingly adjusted according to actual conditions.

3. The corresponding products can be designed according to client' s special requirements.

Products Overview:

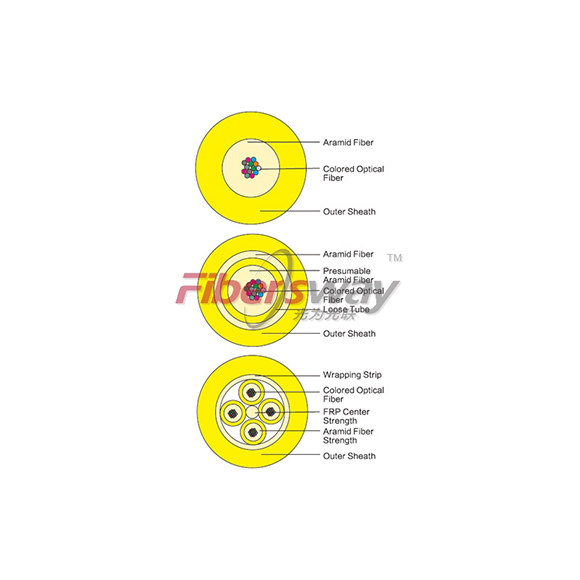

MPO jumper cable includes single layer, double layer and combined structure.

Single layer structure is to put multiple pieces of optical fiber units in the middle of nonmetal aramid fiber reinforced yarn and then extrude to pack a layer of LSZH sheath (or PVC sheath);

Applications:

Connection of optical transceiver and terminal box.

Feature:

Optical fiber adopts multi-mode OM3 or OM4 as transmission medium. Meets the transmission requirement of big capacity data.
