HIGH FLEXIBLE OPTICAL CABLE GJBFJZU

Armored Optical Fiber Cable System for Emergency Condition Use

Descriptions:

he cable in this system utilizes a PVC/LSZH tube that contains 4~12 tight-buffered fibers surrounded by aramid yarns strength member, and sheathed by a stainless hose and braided stainless steel layer, then with a PVC/LSZH jacket.lt is wounded on a specially designed for rush repair and terminated by standard connectors.This cable system can be use for emergency conditions to change the failure lines by repeated mechanical connection methods,and it is convenient returned and repeated used.

Applications:

Live broadcast transmission

Project rush repair

Telecommunication equipment room transfer

Line test

Rush repair mainly for aerial,duct and direct buried temporary conditions.

Features:

Stainless steel hose protected the fibers from unnecessary damage.

Excellent crush,bend and tensile performance,anti-ants and rodent resistance.

Soft and small diameter,compact and light weight;Easy operation and convenient carrying.

Save rush repair time and maintenance costs,and the armored structure can protect the fiber from various stress,thus keep the stability of optical transmission.

No need to worry about construction damage to the optical fibers,double brake and transportation tie devices enable the system is very convenient use and easy carrying.

Each terminal has different color identified boot and robust branch device. Standard connectors such as FC/SC/ST/MU/LC/E2000 are available upon request.

Applicable temperature: -20°C~+60°C;

Environmental protection level: Comply with EU RoHS Standard.

Transmission Performance

Note:

1. represents the outer diameter of the short shaft.

2. The typical value can be correspondingly adjusted according to actual conditions.

3. The corresponding products can be designed according to client' s special requirements.

Products Overview:

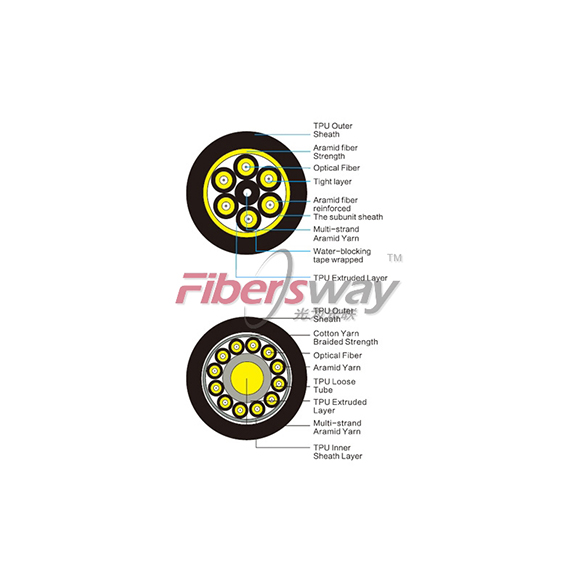

GJBFJZU (nonmetal strength, TPU sheath, there may be nylon yarn woven reinforced high-flexible optical cable) high-flexible optical cable has single sheath structure and double sheath structure;Single sheath structure is to make single-mode or multi-mode optical fiber coated with high viscosity strength tight case material into tight case optical fiber and use high- intensity aramid fiber to extrude and manufacture a layer of TPU sheath externally to make unit cable (may have filler) winding center strength and strand to make cable core, then extrude to manufacture TPU outer sheath to make cable.Single sheath structure is to make single-mode or multi-mode optical fiber coated with high viscosity strength tight case material into tight case optical fiber and use high-strength aramid fiber to extrude and manufacture a layer of TPU as inner sheath, reinforce the weaving of cotton yarn outside inner sheath and then extrude to manufacture TPU outer sheath to make cable.

Applications:

Information transmission of large-size hoisting machinery.

Feature:

Small outer diameter, light weight and low construction cost; It adopts G-FRP aramid fiber reinforced fiber bar (K-FRP), the optical fiber is flexible and has good bending property to ensure optical cable bending radius conform to the requirement and ensure transmission feature of optical fiber stable for a long term. Using TPU outer sheath with outstanding oil resistivity,abrasive resistance and fungus resistance; Each piece of unit cable includes independent reinforced element, which can be terminated with standard joint directly.

Applicable Temperature:   -4 ℃+8 ℃

Environmental standard:   Comply with EU RoHS Standard.

Technical parameters (typical value)

Note:

1. "D" represents the outer diameter of the short shaft.

2. The typical value can be correspondingly adjusted according to actual conditions.

3. The corresponding products can be designed according to client' s special requirements.
