OPTICAL CABLE FOR SHIPBOARD USE GYPFJSU

Armored Optical Fiber Cable System for Emergency Condition Use

Descriptions:

he cable in this system utilizes a PVC/LSZH tube that contains 4~12 tight-buffered fibers surrounded by aramid yarns strength member, and sheathed by a stainless hose and braided stainless steel layer, then with a PVC/LSZH jacket.lt is wounded on a specially designed for rush repair and terminated by standard connectors.This cable system can be use for emergency conditions to change the failure lines by repeated mechanical connection methods,and it is convenient returned and repeated used.

Applications:

Live broadcast transmission

Project rush repair

Telecommunication equipment room transfer

Line test

Rush repair mainly for aerial,duct and direct buried temporary conditions.

Features:

Stainless steel hose protected the fibers from unnecessary damage.

Excellent crush,bend and tensile performance,anti-ants and rodent resistance.

Soft and small diameter,compact and light weight;Easy operation and convenient carrying.

Save rush repair time and maintenance costs,and the armored structure can protect the fiber from various stress,thus keep the stability of optical transmission.

No need to worry about construction damage to the optical fibers,double brake and transportation tie devices enable the system is very convenient use and easy carrying.

Each terminal has different color identified boot and robust branch device. Standard connectors such as FC/SC/ST/MU/LC/E2000 are available upon request.

Applicable temperature: -20°C~+60°C;

Environmental protection level: Comply with EU RoHS Standard.

Transmission Performance

Note:

1. represents the outer diameter of the short shaft.

2. The typical value can be correspondingly adjusted according to actual conditions.

3. The corresponding products can be designed according to client' s special requirements.

Products Overview:

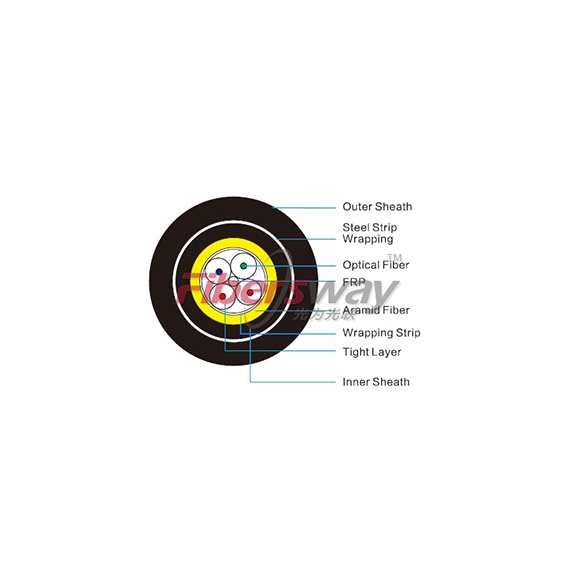

GYPFJSU (non-metal strength, layer stranded tight cover, LSZH inner sheath, cable for TPU outer sheath Shipboard use;) the structure is to make multiple pieces of single-mode or multi-mode optical with high viscosity strength tight case material into tight case optical fiber fiber coated winding center strength, strand it and pack it with aramid fiber to reinforce it and become cable core, then extrude and manufacture a layer of LSZH inner sheath and then use double steel lapping to extrude TPU outer sheathto make cable.

Applications:

Signal transmission of optical fiber network electronic device of Product Structure Chart Shipboard.

Feature:

Double steel band armored lapping structure ensures optical cable has enough anti-flattening property as well as outstanding bending property; >Using TPU outer sheath with outstanding oil resistivity, abrasive resistance and fungus resistance; >High strength aramid fiber stiffener ensures transmission property of optical fiber stable for a long term; >Small diameter, lightweight, inflaming retarding, easy to strip and high flexibility;For easy construction and maintenance.

Applicable Temperature: -40 ℃+80 ℃

Environmental standard: Comply with EU RoHS Standard.

Technical parameters (typical value)

Note:

1. "D" represents the outer diameter of the short shaft.

2. The typical value can be correspondingly adjusted according to actual conditions.

3. The corresponding products can be designed according to client' s special requirements.
