MICRO BUNDLE TUBE TYPE INNER-ELLIPSE EASY-BRANCHING OPTICAL CABLE WITH PARALLEL STRENGTH

WeChat

Sina Weibo

QQ space

Douban

Baidu Post Bar

0571-6375 2888

Product details

Products Overview:

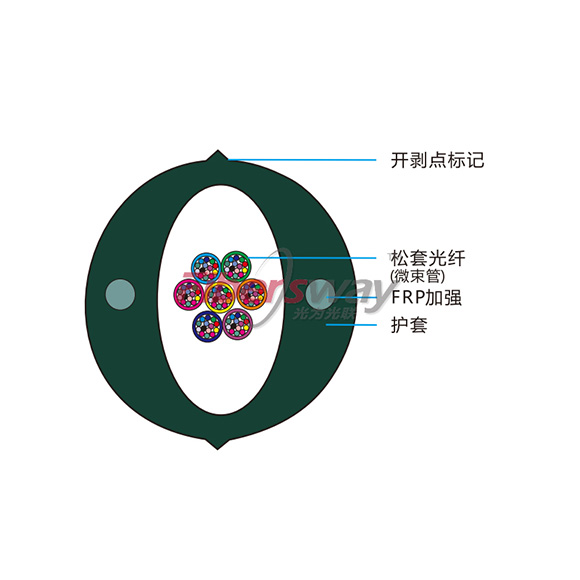

Structurally for the micro bundle tube type inner-ellipse easy-branching optical cable with parallel strengths, the single-mode or multi-mode optical fiber is sleeved into the micro bundle tube of LSZH sheath,and then multiple micro bundle tubes are placed between two parallel strengths and then one layer of LSZH sheath is externally extruded to form a complete cable.

Executive Standard:

YDT1258.4-2005 the Series of Indoor Optical Fiber Cables -- Multifiber Optical Cables

Technical Parameter (Typical Value)

Model	Core Number	Micro Bundle Tube			Optical Cable Specification (mm)	Tensile Strength(N)		Crush Resistance (N/100mm)		Minimum Bending Radius (mm)
Model	Core Number	Tube Number	core Number	Outer Number	Optical Cable Specification (mm)	Short-term	Long- term	Short- term	Long- term	Dynamic	Static
GJPFJWQH	12	3	4	0.9	9.0	500	250	1200	600	20D	10D
GJPFJWQH	12	2	6	1.1	8.5	500	250	1200	600	20D	10D
GJPFJWQH	12	1	12	1.3	8.0	500	250	1200	600	20D	10D
GJPFJWQH	24	6	4	0.9	9.0	500	250	1200	600	20D	10D
GJPFJWQH	24	4	6	1.1	9.0	500	250	1200	600	20D	10D
GJPFJWQH	24	3	8	1.2	9.0	500	250	1200	600	20D	10D
GJPFJWQH	24	2	12	1.3	8.0	500	250	1200	600	20D	10D
GJPFJWQH	36	9	4	0.9	9.0	500	250	1200	600	20D	10D
GJPFJWQH	36	6	6	1.1	10.0	500	250	1200	600	20D	10D
GJPFJWQH	36	3	12	1.3	9.0	500	250	1200	600	20D	10D
GJPFJWQH	48	12	4	0.9	10.0	500	250	1200	600	20D	10D
GJPFJWQH	48	8	6	1.1	10.0	500	250	1200	600	20D	10D
GJPFJWQH	48	6	8	1.2	10.0	500	250	1200	600	20D	10D
GJPFJWQH	48	4	12	1.3	9.5	500	250	1200	600	20D	10D
GJPFJWQH	72	18	4	0.9	11.5	500	250	1200	600	20D	10D
GJPFJWQH	72	12	6	1.1	11.5	500	250	1200	600	20D	10D
GJPFJWQH	72	9	8	1.2	11.0	500	250	1200	600	20D	10D
GJPFJWQH	72	6	12	1.3	10.5	500	250	1200	600	20D	10D
GJPFJWQH	96	24	4	0.9	11.5	500	250	1200	600	20D	10D
GJPFJWQH	96	16	6	1.1	12.0	500	250	1200	600	20D	10D
GJPFJWQH	96	12	8	1.2	11.5	500	250	1200	600	20D	10D
GJPFJWQH	96	8	12	1.3	10.5	500	250	1200	600	20D	10D
GJPFJWQH	108	18	6	1.1	12.5	500	250	1200	600	20D	10D
GJPFJWQH	108	9	12	1.3	11.5	500	250	1200	600	20D	10D
GJPFJWQH	144	24	6	1.1	13.5	500	250	1200	600	20D	10D
GJPFJWQH	144	18	8	1.2	13.0	500	250	1200	600	20D	10D
GJPFJWQH	144	12	12	1.3	12.5	500	250	1200	600	20D	10D
